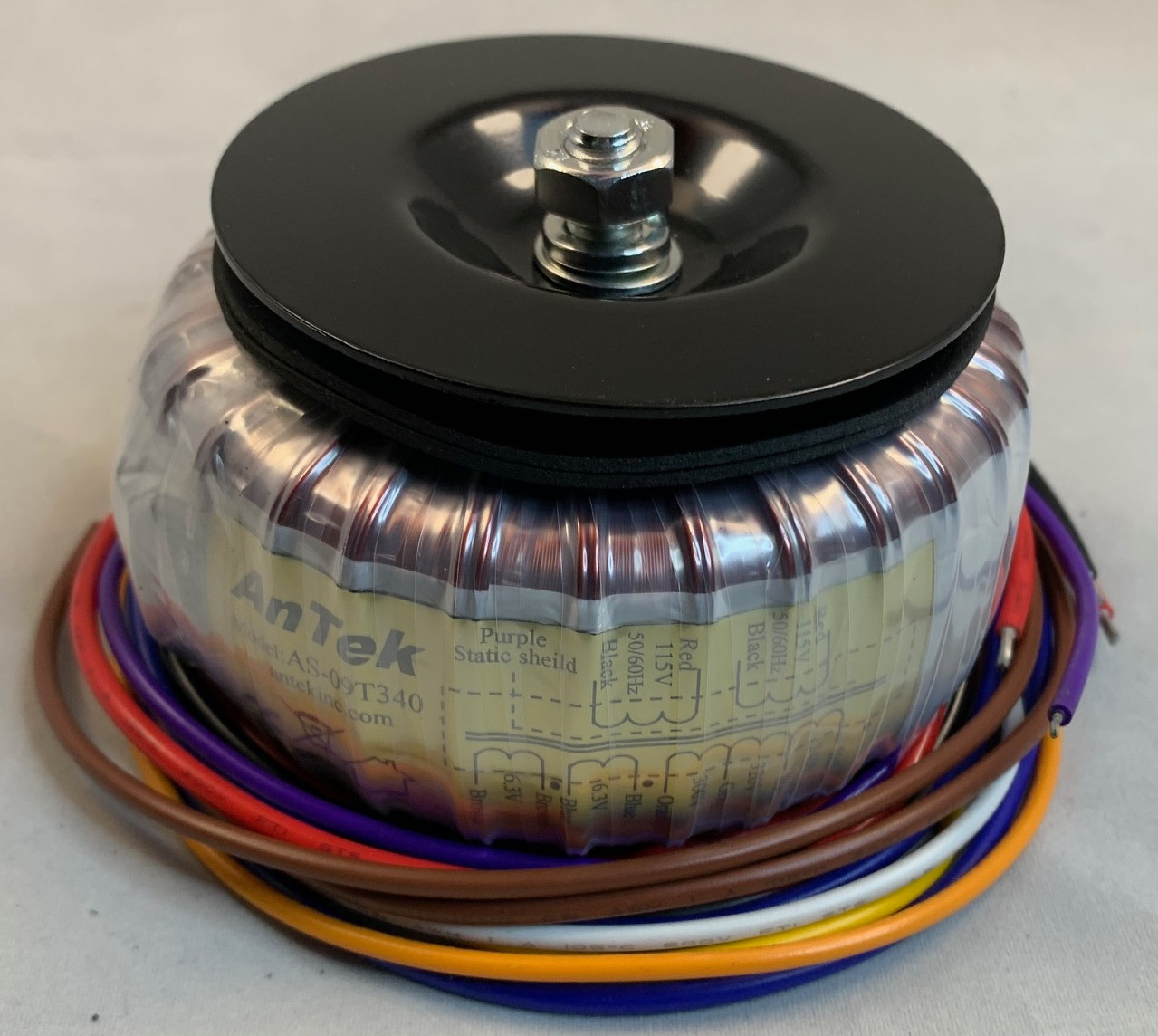

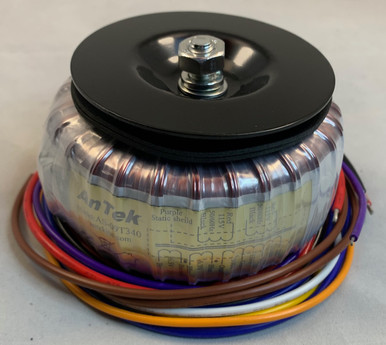

AS-09T340 - 100VA 340V Transformer

These 100VA toroidal tube audio power transformers feature a static shield between the primary and secondary windings to improve electrical isolation and reduce noise interference. A magnetic shield around the outside of the transformer further reduces magnetic leakage, helping minimize hum and interference in sensitive audio applications.

     With these advanced features, these transformers are specially designed for high-quality tube audio equipment. They are compatible with standard 115V or 230V input at 50Hz or 60Hz.

   The transformers use heavier-gauge copper wire than normally required, helping minimize copper losses and voltage drop when operating at full power. Each transformer is also tested for dielectric leakage between the primary and secondary windings at up to 3500VAC to ensure excellent electrical isolation.

   Each transformer includes two rubber isolation pads, a mounting disk, and a center bolt assembly for easy installation.

• Product Brief

• Weight: 4lb
• Dimensions: 3.6" d x 1.6" h
