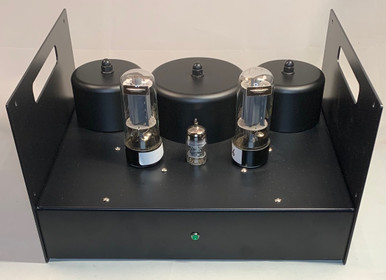

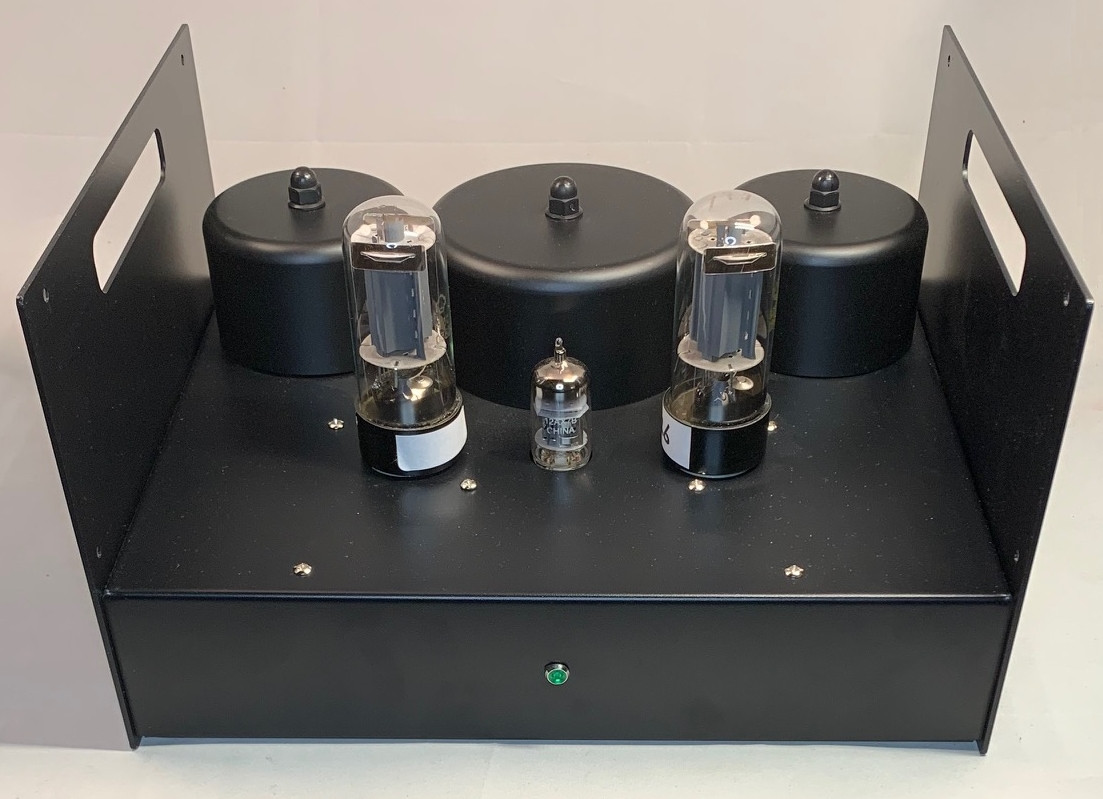

CC-1109 Tube Amp Chassis

Experience unmatched quality and performance with this premium-grade tube amplifier chassis, precision-engineered from heavy-duty 0.05" thick steel. Its rigid construction ensures exceptional durability while effectively minimizing vibration and hum interference for superior audio clarity.

The chassis features accurately pre-punched holes for tube sockets, RCA jacks, and speaker connectors, along with dedicated mounting points tailored for our toroidal power transformers and output transformers—making assembly clean and effortless.

For safe and noise-free operation, it includes a high-quality IEC power inlet with an integrated RFI/EMI filter, fuse, and power switch to suppress power-line interference. Three CA-series transformer covers are also included, offering both professional aesthetics and enhanced shielding.

The main PCB can be ordered directly from us or through third-party suppliers, with all mounting holes precisely aligned and fully compatible—no modifications required.

 Compatible Components
 Output Transformer: MS-10W70 ×2 or MS-15W60 ×2
 Output Transformer Covers: CA-002 ×2 (included)
 Power Transformer: AS-05Txxx or AS-05TCxxx series
 Power Transformer Cover: CA-003 (included)
 Tube Sockets: 8-pin ×2, 9-pin ×1
 IEC Power Inlet: CW2B-10A-T (included)
 Main PCB: STA-15PCB or compatible 3rd-party PCB
 RCA Connectors: Panel-mount ×2
 Speaker Connectors: Panel-mount ×6
 Tubes: 6L6, 6V6, EL34, KT66
Package Includes
 Main chassis & bottom plate
 Two side panels
 Top cover with extended sidewalls
 Power transformer cover
 Two output transformer covers
 IEC power inlet with fuse and switch
 6Vac green LED
 Screws and spacers
