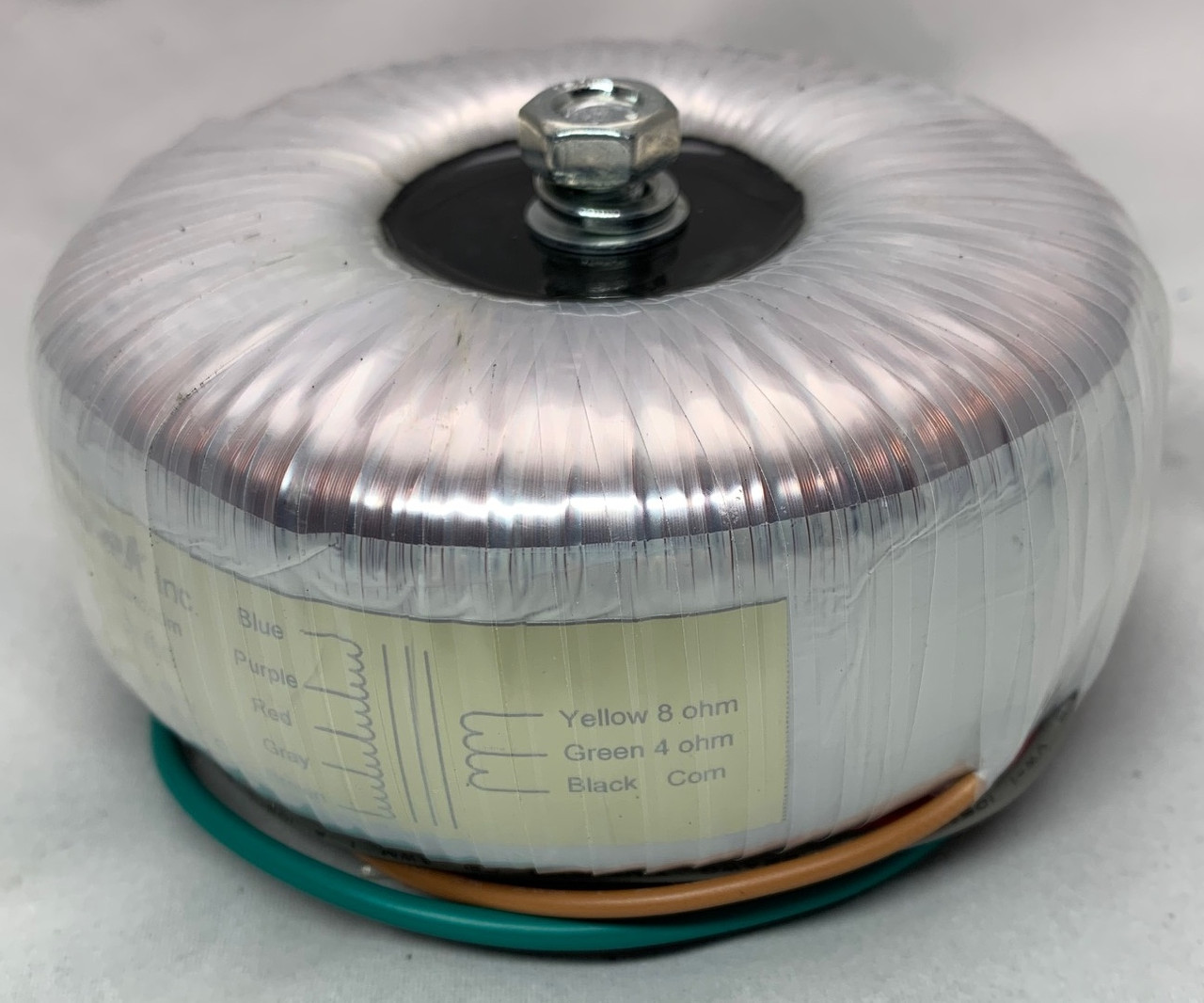

MP-60W50 60W Output Transformer

 This newly crafted 60W toroidal tube output transformer is tailored for high-end Push Pull audio amplifiers. Utilizing a toroidal core with strategically placed air gaps, it enhances audio quality significantly. Representing an upgraded version, it is optimized to function seamlessly with the majority of common output tubes.

 Product Brief

• Output power                     60 Watt
• Turn Ratio                          25:1
• Ultra Linear tap                40%
• Primary impedance           5.0K ohm
• Inductance                         26 Henry
• Primary DC resistance      213 ohm
• Output impedance             4 & 8 ohm
• Output DC resistance        0.3 & 0.4 ohm
• Max DC plate current      150mA
• Frequency response          10Hz - 20KHz
• Weight                                5.2lb.
• Dimensions                       5.0" d x 2.1" h
• Suggest Tubes                   807, 5881, EL34, 6L6 6146B, 6550B, KT88
