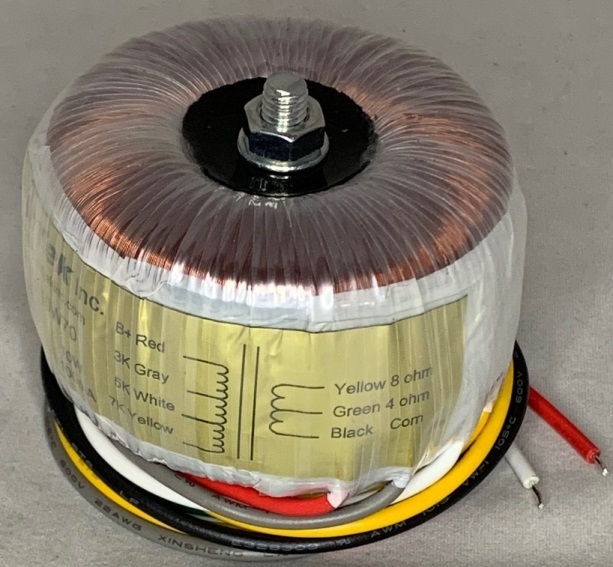

Toroidal Output Transformer
Toroidal output transformers provide several key advantages over traditional laminated EI-core transformers, making them ideal for high-performance and precision applications. Their toroidal (donut-shaped) core design ensures superior efficiency by reducing core losses and improving power transfer. The closed magnetic path effectively contains stray magnetic fields, minimizing electromagnetic interference (EMI) and preventing noise from coupling into nearby sensitive circuits.
These transformers use a precisely engineered air gap in the core to handle DC bias without saturating, ensuring clean and linear performance even under demanding operating conditions. The core is constructed with very thin, high-quality laminations to minimize eddy current losses, which improves efficiency and extends bandwidth—particularly beneficial for higher-frequency response.
Their compact and lightweight form factor saves space, while the symmetrical winding pattern reduces mechanical hum and vibration, resulting in quieter operation and improved signal integrity. These features make toroidal output transformers especially suitable for high-end audio amplifiers, where low distortion and extended frequency response are critical, as well as for medical, instrumentation, and other sensitive equipment that require stable, low-noise output.
