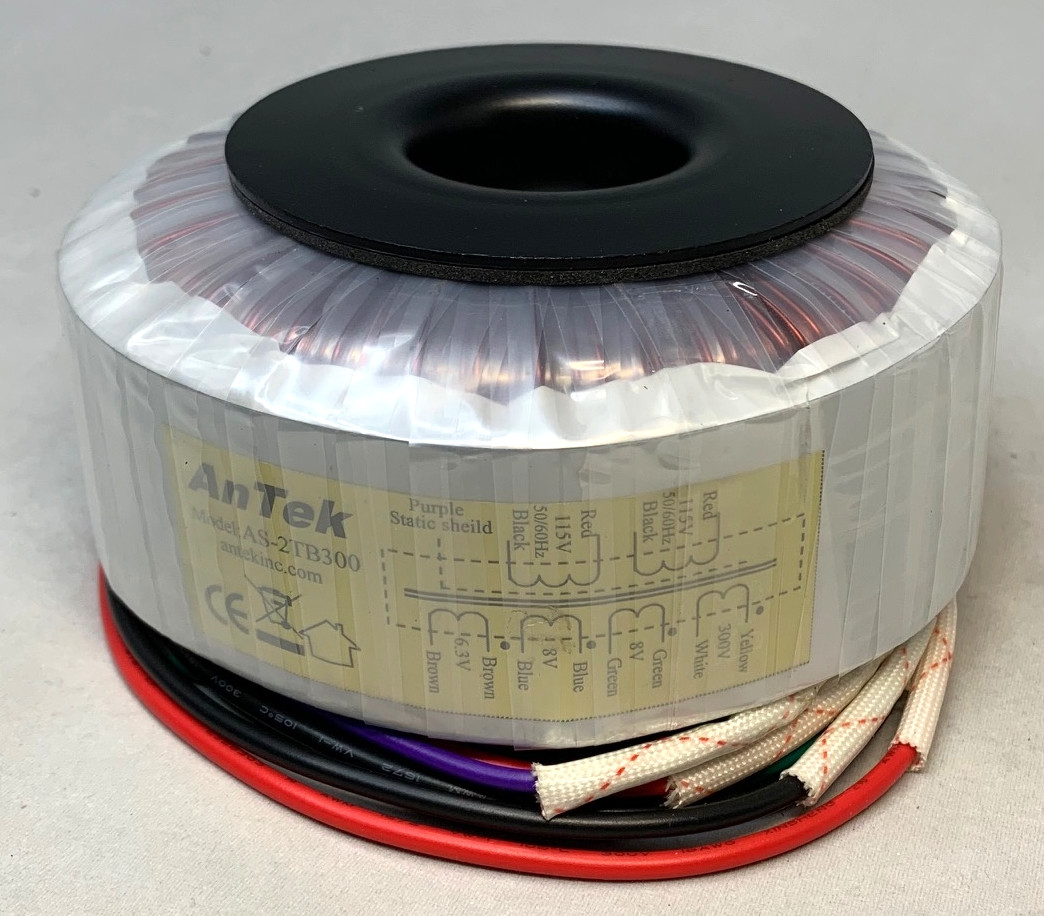

AS-2TB300 - 300B Tube Power Transformer

High-Performance 200VA Toroidal Audio Power Transformer

   The 200VA toroidal tube-audio power transformer is specially designed for 300B tube amplifiers. It features a static shield between the primary and secondary windings for improved isolation and reduced noise, along with an external magnetic shield to minimize magnetic leakage. The design supports universal operation at 115/230VAC, 50/60Hz, and includes heavier-gauge copper windings for reduced loss and stable full-power performance. Dielectric strength between primary and secondary is tested to 3500VAC.

   This model provides two 8V outputs for regulated 5VDC filament supplies, a standard 6.3V filament output, and extra high-voltage power capacity to improve voltage stability. Each transformer is supplied with two rubber pads, a holding disk, and a center-bolt mounting kit.

• Product Brief

• Weight: 6lb
• Dimensions: 4.9" d x 2.5" h
