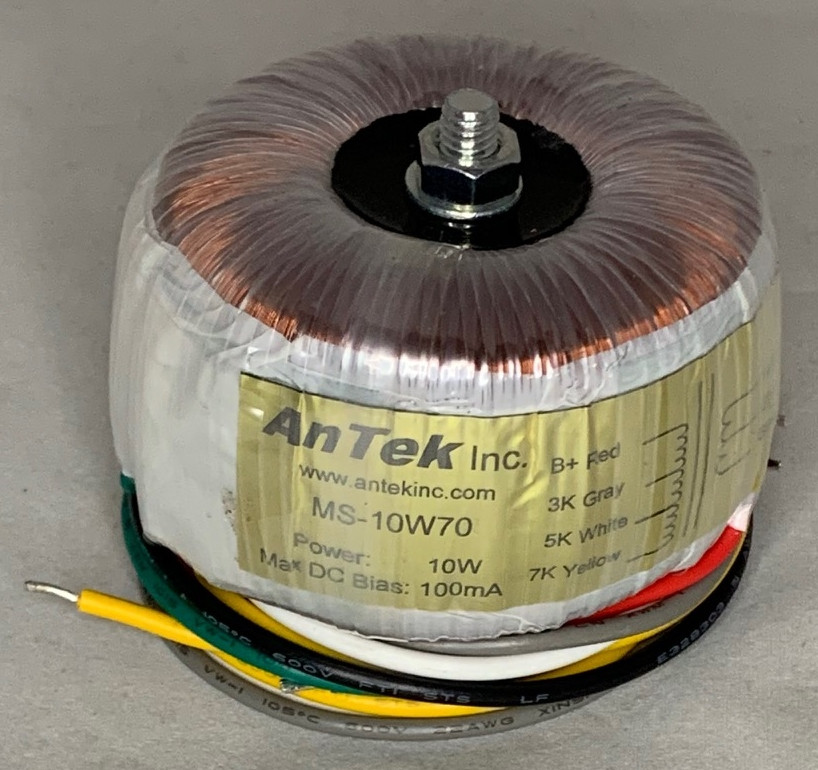

MS-10W70 10W Single Ended Output Transformer

This 10W single-ended toroidal output transformer is specifically designed for high-end Hi-Fi audio amplifiers. It features a precision-engineered toroidal core with carefully calculated air gaps to support proper DC biasing and enhance audio performance. The design minimizes distortion and improves frequency response, delivering clean, detailed sound reproduction. Compatible with most commonly used output tubes, this transformer offers an excellent solution for audiophiles seeking superior sound quality in single-ended amplifier designs.

Product Brief

• Output Power: 10W output
• Impedance:  3K, 5K, 7K
• Max DC Current: 100mA

• Suggest Tubes: 6AQ5, 6V6, 6L6, EL84
• Weight: 1Lb
• Dimensions: 2.7" d x 1.8" h
